Follow the steps below to connect your Kubernetes environment to Panoptica. You will first define your cluster in the Panoptica platform, then install our controller in your cluster. As part of the installation, Istio service mesh will also be deployed.

Define a Kubernetes cluster on Panoptica

You define a new cluster in four steps, some of which are optional:

• STEP 1 - define the cluster properties, including the name and type of orchestration
• STEP 2 (optional) - select options for the controller that is deployed on the cluster; if not selected, default options are used
• STEP 3 (optional) - select _API Security _options, if the Panoptica account is configured for API Security
• STEP 4 (optional) - select Advanced settings for the controller; if not selected, default options are used.

To create a new cluster, start with these steps:

1. Navigate to the Deployments page (use the Navigation menu on the left).
2. Select the CLUSTER CONTROLLERS tab.
3. Click Connect Cluster.

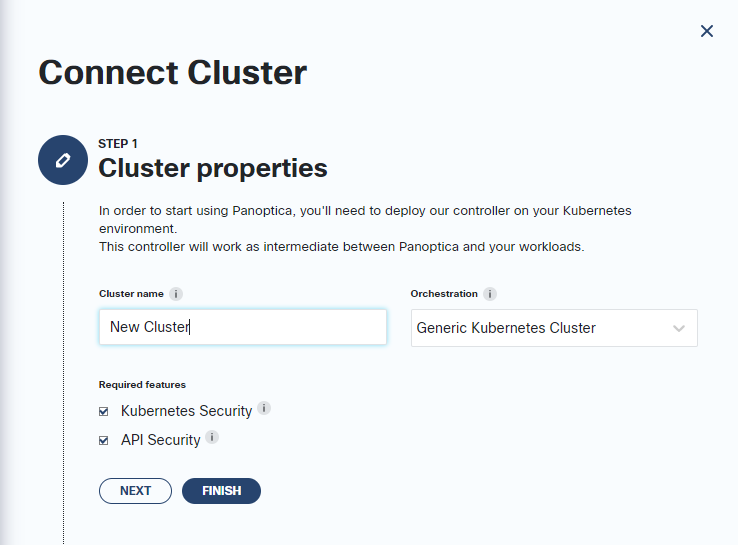

STEP 1 - Cluster Properties

1. Enter a name for the cluster (as it will be referred to in the Panoptica UI).
2. Select the orchestration for the cluster, from the list (GKE, EKS, AKS, OpenShift, Rancher, etc.).
3. Select at least one of these two options -
   • Kubernetes Security - this includes in the deployment components enabling workload visibility, image scanning , and the application of runtime policies.
   • API Security - this includes in the deployment components enabling API tracing and spec analysis.
4. Click NEXT to continue to the next step, or FINISH to complete the cluster creation, skipping the next steps.

STEP 2 - Network Security

This is an optional step, to set options for the Panoptica controller that is deployed on the cluster. If it is skipped, default settings will be used.

1. Set the following options:

• Add Network Security - enable tracking of connections to the workloads deployed on the cluster, and apply the Runtime Connection Policy to it.
  If selected ('Yes'), these additional options can be set:
• Istio already installed - Istio will not be included in the Panoptica controller deployment (the YAML file), and deployed by it. Instead, the controller will use an existing Istio deployment in the cluster (the controller will not work if Istio is not present). When selected, choose the version of the installed Istio. The version can be found in the image tag of the _istiod _deployment in the _istio-system _namespace, and can be retrieved using the following command:
  Istio options.

kubectl get deployment istiod -o yaml -n istio-system | grep image: | cut -d ':' -f3 | head -1 | grep -oE "[0-9]+\.[0-9]+\.[0-9]*"

• Note: if you select this option, and use an existing Istio deployment, these capabilities may be missing or reduced:
  • less accurate detection of FQDNs for external outbound connections
  • no support for Multi-clusters
  • no support for Istio Service Mesh Expansion
  • no support for TLS inspection

Istio configuration options

• Install Istio Ingress Gateway - install the Istio Ingress Gateway when Istio is deployed (only available if Istio already installed _is set to _No).
• Enable namespaces isolation - service information is only synced to proxies within the same namespace (only available if Istio already installed _is set to _No).
• Supports multi cluster communication - enables the controller to discover pods on other clusters in a multi-cluster environment. This option must be enabled in order to apply runtime policies on workloads across multiple clusters. See Deploy on Kubernetes Multi-clustersies)https://panoptica.readme.io/docs/multi-cluster for details.
• Inspect incoming cluster connections - Connection rules with external IP-based sources will be enforced, and external IP sources will be shown with their IP address. When switched off, these rules will not be enforced, and the external IP address will not be shown.

Envoy configuration options

• Hold Application till proxy is ready - if enabled, application workloads will not be started on the cluster until the Istio proxy (deployed as part of the Panoptica controller) is started.
• Custom envoy settings - allow customization of memory and CPU resource allocation.
• Enable TLS inspection - allow Panoptica to inspect HTTPS traffic from the cluster, by decrypting and then re-encrypting it. This is used to enforce Connection Policy rules and to identify Layer 7 attributes.
• External CA integration - configure the controller to use the external CA configured for the cluster, instead of the default CA configured in Istio.

2. Click NEXT to continue to the next step, or FINISH to complete the cluster creation, skipping the next steps.

STEP 3: API Security

This step appears only if API Security is enabled in your Panoptica account, and selected in STEP 1, above. If it is skipped, default settings will be used.

1. Select API Security trace sources:

   • Istio - trace API traffic into and out of the cluster, using Istio
   • External gateways - trace API traffic into and out of an external API Gateways gateway

2. Click NEXT to continue to the next step, or FINISH to complete the cluster creation, skipping the next step.

STEP 4: Advanced settings

These are additional settings for the cluster controller.

1. Set advanced settings:

Pre-deployment settings

• CI image hash validation - Panoptica will identify new pods with containers according to the image hash value, which must match the value generated by Panoptica CI plugin, or the value entered manually in the UI. If the hash value does not match, the pod will be unknown.
• CI image signature validation - Panoptica ensures that only signed images are deployed to pods.
• CD Pod template- Panoptica will identify new Pod template workloads in the cluster from a CD tool (such as Helm) that has a Panoptica CD plugin installed, and will assume that Pod templates running on the cluster, but not identified by the CD plugin, are 'unknown'. Pod templates deployed while this switch is 'Off', and that appear in the Workloads page, will be considered 'known'. Unknown workloads are subject to the default Runtime Deployment Policy Unknown Workload rule , which may block their deployment on the cluster
• Restrict Registries - Panoptica will mark workloads as 'unknown' if the images are pulled from registries not designated as trusted (in the Registries tab). If disabled, workloads from all registries will be designated as 'known'. Unknown workloads are subject to the default Runtime Deployment Policy Unknown Workload rule.
  • API token injection - allow Panoptica to securely manage tokens , and inject them into workloads as need ed.

Controller deployment settings

• Persistent storage - the controller will save the policy in persistent storage (disk), to be available after a pod restart, without having to copy it from the server. Requires 128MB of storage.
• Minimal number of controller replicas - the number of controllers that will be replicated, to provide High Availability.
• Use Internal Registry - When enabled, Panoptica deployment will be from images stored in an internal registry and not from Cisco's registry
• External HTTPs proxy - if your cluster has an HTTP proxy configured, enable this switch, and set the value to the address of the proxy.

Other settings

• Enable fuzz test option on APIs - allow API fuzzing testing on APIs
• Panoptica policy CR requires deployer-
• Auto-label new namespaces - When enabled, any new Kubernetes namespace will be labeled to allow Panoptica to protect it (will be shown as "protected")
• Fail Close - when enabled, workloads and connections will be blocked if the Panoptica controller is not responding.

2. Click FINISH. The new cluster will appear in the list of Cluster Controllers with status Pending Install (indicating the controller has not yet been deployed)..

Deploy the Panoptica controller to the cluster

1. Hover over the cluster, and click the download arrow. This will show instructions to install Panoptica controller on your cluster. There will also be a link to download and run the installer, as a YAML or script file. Save the file on the machine or VM from which you will deploy the controller (running the K8s CLI).

Follow the steps shown onscreen (in the Installation Info box) to deploy the controller to the cluster.

You can deploy the controller on one or more namespaces in the cluster. Namespaces that have a controller deployed will be protected by Panoptica.

Typically, these are the steps to deploy the controller:

1. Add a label on all the K8s cluster namespaces that will be controlled by the controller, using this command, for a single namespace (repeat this for additional, individual namespaces in the cluster):

kubectl label namespace <name> SecureApplication-protected=full  --overwrite

Or this, for all namespaces:

kubectl label namespace $(kubectl get namespaces | awk '{print$1}' | grep -v -e NAME -e kube-public -e kube-system -e istio-system -e portshift) SecureApplication-protected=full  --overwrite

📘

Note

The label SecureApplication-protected=full configures the controller to apply both Connection and Deployment Policies on the namespace (see Runtime Policies). You can use these options to restrict the enforcement of Panoptica Policies on the namespace:

• SecureApplication-protected=full - Controller will enforce both connection policy and deployment policy in the labeled namespace
• SecureApplication-protected=connections-only - Controller will enforce only connection policy in the labeled namespace
• SecureApplication-protected=deployment-only - Controller will enforce only deployment policy in the labeled namespace
• SecureApplication-protected=disabled - Controller will not enforce connection policy or deployment policy in the labeled namespace

2. Extract the installation scripts:

tar -xzvf newCluster.tar.gz

3. Run this command to deploy the controller:

./install_bundle.sh

📘

Note

The downloaded installation bundle is unique per cluster. Once the Panoptica controller is installed on the cluster, the same installation bundle cannot be used for another Kubernetes cluster.

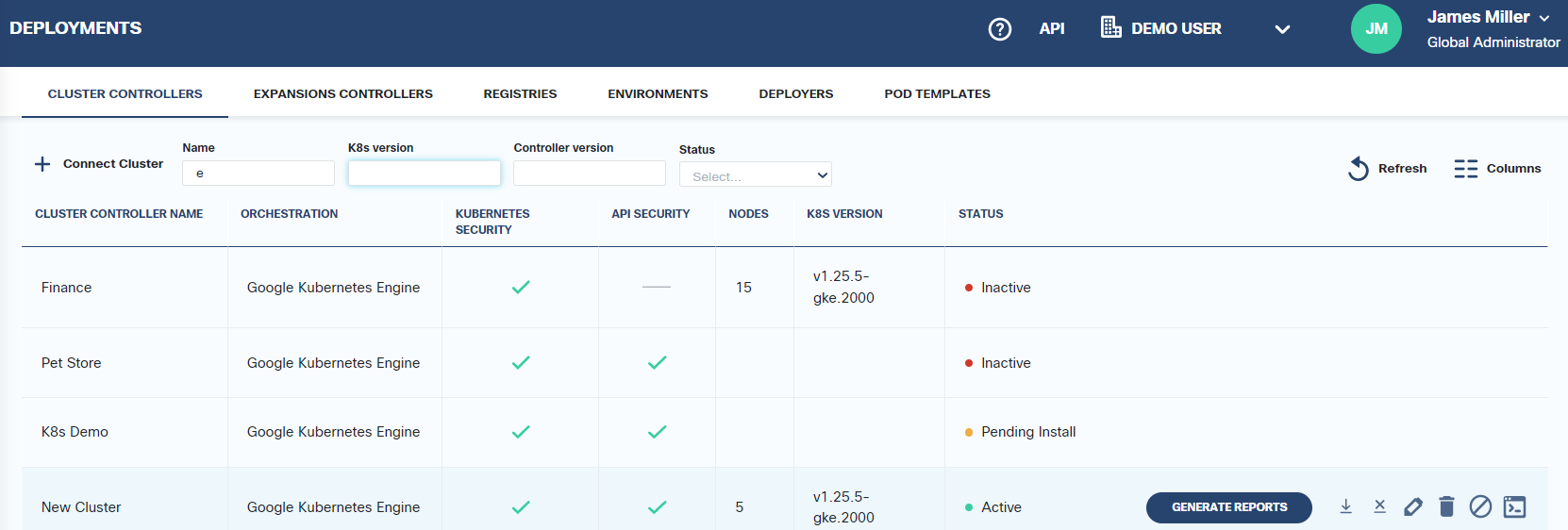

After the controller is deployed, the CLUSTER CONTROLLERS tab of the Deployments page on the Panoptica Console will show the status of the controller as 'Active'.

Uninstall the Panoptica controller

If you no longer require Panoptica's services, see the steps to Uninstall Panoptica.
